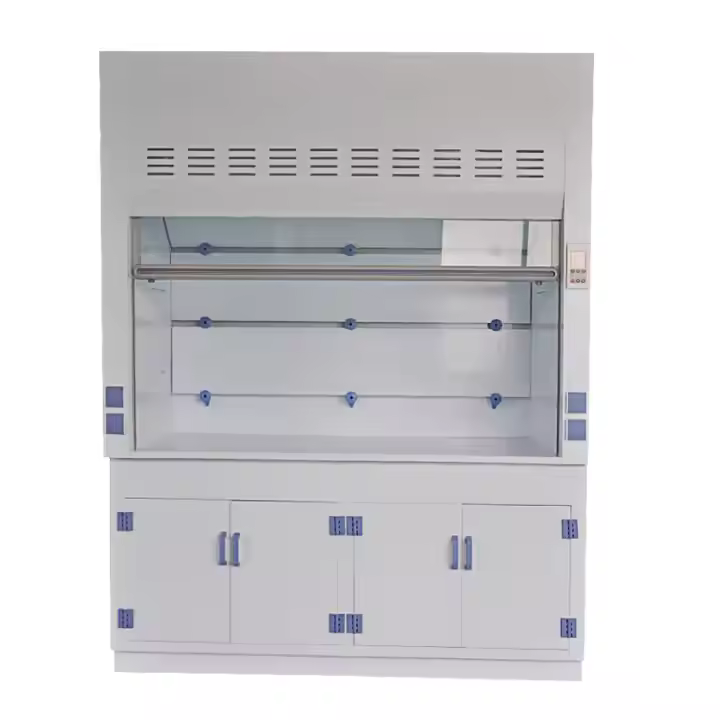

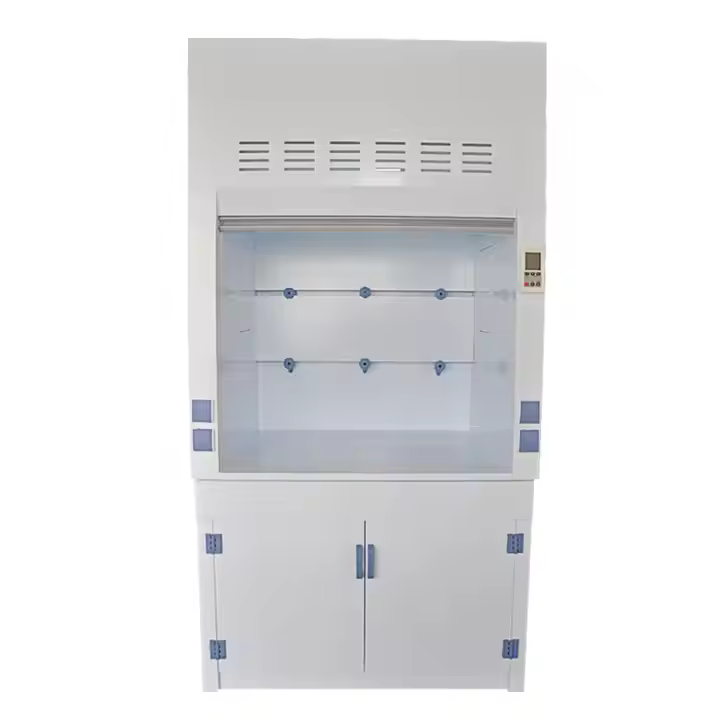

Laboratory PP Ducted Fume Hood Acid Fume Chamber Fume Hood Lab Equipment

Dimension

Length mm(L)

Width mm(W)

Height mm(H)

Total Height     mm

Remark

1

1200

850

2350

2350

2

1500

850

2350

2350

3

1800

850

2350

2350

Notes:

1.Above size is our standard item.

2.Dimension can be customized upon customer’s request.

3.Built-in axial flow blower and⊄250mm exhaust duct included.

Housing

Using 8.0mm PP polypropylene plate welding production, after carving, bending the entire cabinet at one time, featured with strong anti-acid and alkali, corrosion resistance.

Inner shell

Using a new 8.0mm PP polypropylene plate welding production, with strong anti-acid and alkali, corrosion resistance characteristic, the inner side board can be fixed with water cock, gas cock. The back plate can be fixed with baffle, roof lighting and gas hood device.

Operational worktop

8.0mm PP polypropylene worktop,  includes water fender, spray-proof, the table has a good performance of waterproof, anti-acid and alkali.

 Baffle

8.0mm PP polypropylene board, resistant to strong acid and alkali. Installed in the back of the work space and above, including at least three pieces plates, so that the work space and the connection between the exhaust pipe to form a gas chamber, the polluted gas are exhausted completely,

 the baffle plate is attached to the cabinet with the clips, detachable.

 Gas hood

PP material, with a strong corrosion resistance, rectangular opening at the bottom of the entrance,  circular opening at the top

Fluorescent lamp

1 piece 30W light (waterproof, anti-corrosion, anti-oxidation)

Window sliding door

Movable vertical pull-up door, placed between the work space and the operator to protect the operator's safety, combined with the balance position, sliding doors can be stopped at any point of activity. a piece of tempered glass window on the adjustable door, the field of view can be completely clear.

 Window

Using 5mm thick tempered glass

Window frame

Aluminum alloy door frame, ensure the safety and durability of the window

Windows  Suspension Cable

Plastic suspension cable, low noise, fast pulling speed, strong balance characteristic

 Control switch

LCD control panel, set with the power, switches, lighting, fan and running lights and other buttons, the LCD screen can clearly show the operation of the fume hood.

Socket

Equipped with four 220V universal socket. (Other type of socket can be optional, according to customers need)

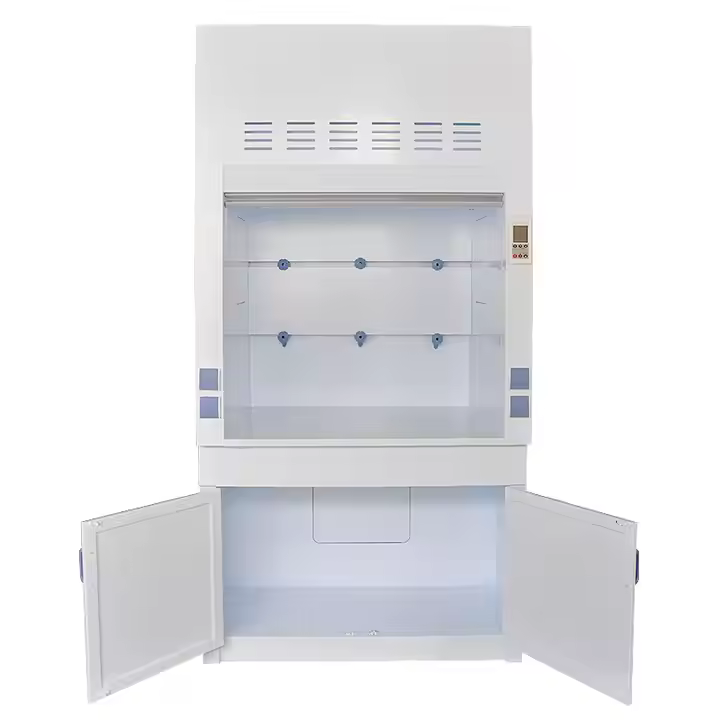

Base cabinet

8.0mm PP polypropylene board, the door is firm solid, not easy to deformation, elegant appearance

Door handle

Laboratory PP handle, strong corrosion resistance.

 Hinge

Laboratory PP hinge, strong corrosion resistance.

Water sink

PP cup , made of high-density PP ,strong corrosion resistance, with filtering and anti-odor function, water trap with high-density PP production( This is extra option)

Water cock

wall-mount remote control water valve, faucet, the main body is made of the thick copper, the surface with high brightness epoxy resin coating, corrosion resistance, heat resistance; Ceramic valve core, 90 ° rotation, life span 500,000 times, static maximum resistance Pressure 20 bar; switch knob for high-density PP production, ergonomic design, feel comfortable. (This is extra option)

Gas cock

Wall-mount remote control gas valve, the main body is made of the thick copper, the surface with high brightness epoxy resin coating, corrosion resistance, heat resistance; ergonomic design, feel comfortable. (This is extra option)

 Air Velocity /Exhaust air volume  requiremen

0.4m/sec~0.6 m/sec.

   Noise

≤60dB

  Blower

PP centrifugal energy-saving fan, fan motor 380V three-phase motor, fan material PP polypropylene, with high strength, light weight, not easy to aging, low noise, excellent corrosion resistance and so on. (According to the actual need, equip with the fan, duct, etc., the fume hood price does not include the fan ,duct and related accessories prices.
